Building Knowledge Graph-Based Agents with Structured Text Generation and Open-Weights Models

Alonso Silva (GitHub: alonsosilvaallende)

hi 👋, I’m Alonso

Researcher on Generative AI at Nokia Bell Labs
AI Consultant/Trainer
PhD at Inria, post-doc at UC Berkeley
Based in Paris, France
https://alonsosilvaallende.github.io/
- Github: https://github.com/alonsosilvaallende/
- Twitter: @alonsosilva
- Bluesky: https://bsky.app/profile/alonsosilva.bsky.social
- Mastodon: https://sigmoid.social/@alonsosilva
- Linkedin: https://www.linkedin.com/in/alonsosilvaallende/

Slides: alonsosilvaallende.github.io/2024-PyData-Global/
This presentation: https://github.com/alonsosilvaallende/2024-PyData-Global/blob/main/PyData-Global.ipynb

Introduction

The problem

scikit-llm: https://skllm.beastbyte.ai/

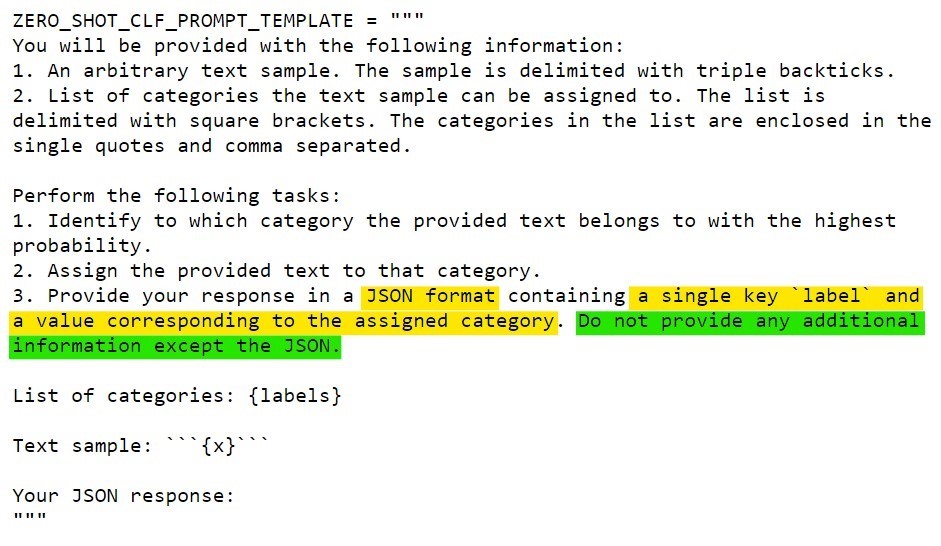

Show me the prompt!

scikit-llm prompts: https://github.com/iryna-kondr/scikit-llm/blob/main/skllm/prompts/templates.py

What is NOT Structured Generation?

Structured Outputs (in the style of Instructor/Marvin libraries)

Instructor: https://python.useinstructor.com/
Marvin: https://www.askmarvin.ai/

Structured Outputs in Code

import llama_cpp

1model_id = "NousResearch/Hermes-3-Llama-3.1-8B"
2llm = llama_cpp.Llama(
    "/big_storage/llms/models/Hermes-3-Llama-3.1-8B.Q6_K.gguf",
    tokenizer=llama_cpp.llama_tokenizer.LlamaHFTokenizer.from_pretrained(
        model_id
    ),
    n_gpu_layers=-1,
    flash_attn=True,
    n_ctx=8192,
    verbose=False,
    chat_format="chatml-function-calling"
)

1: Hermes 3 by NousResearch
2: llama-cpp-python python bindings for llama.cpp

Structured Outputs in Code

from typing import Literal

from pydantic import BaseModel, Field


class Sentiment(BaseModel):
    """Correctly inferred `Sentiment` with all the required parameters
    with correct types."""

    label: Literal["Positive", "Negative"] = Field(
        ..., description="Sentiment of the text"
    )

Structured Outputs in Code

from langchain_core.utils.function_calling import convert_to_openai_tool

tools = [convert_to_openai_tool(Sentiment)]
tools

[{'type': 'function',
  'function': {'name': 'Sentiment',
   'description': 'Correctly inferred `Sentiment` with all the required parameters\nwith correct types.',
   'parameters': {'properties': {'label': {'description': 'Sentiment of the text',
      'enum': ['Positive', 'Negative'],
      'type': 'string'}},
    'required': ['label'],
    'type': 'object'}}}]

Structured Outputs in Code

user_input = "You are great"

output = llm.create_chat_completion(
    messages=[
        {
            "role": "user",
            "content": (
                "What is the sentiment conveyed in the following text: "
                f"{user_input}."
            ),
        },
    ],
    tools=tools,
    tool_choice={"type": "function", "function": {"name": "Sentiment"}},
)

output["choices"][0]["message"]["tool_calls"][0]["function"]["arguments"]

'{ "label": "Positive"}'

What is Structured Generation?

Outlines logo

https://dottxt-ai.github.io/outlines/

Observation: LLMs are samplers

https://alonsosilva-nexttokenprediction.hf.space

We need to talk about Regular Expressions (regex)

Regular Expression (regex)

From regular expression (regex) to deterministic finite automata (DFA)

For example, for sentiment analysis:

Life is hard

What’s in a “label”?

Structured Generation in Code

import outlines

import transformers

outlines_tokenizer = outlines.models.TransformerTokenizer(
    transformers.AutoTokenizer.from_pretrained(model_id)
)

outlines_logits_processor = outlines.processors.JSONLogitsProcessor(
    Sentiment,
    outlines_tokenizer,
1    whitespace_pattern=r"[\n\t ]*"
)

1: I like to give the language model some structure but also some leeway.

Structured Generation in Code

user_input = "You are great"

output = llm.create_chat_completion(
    messages=[
        {
            "role": "user",
            "content": (
                "What is the sentiment conveyed in the following text: "
                f"{user_input}."
            ),
        },
    ],
    logits_processor=transformers.LogitsProcessorList(
        [outlines_logits_processor]
    ),
)

output["choices"][0]["message"]["content"]

'{ "label": "Positive" }'

Structured Outputs + Structured Generation

user_input = "You are great"
output = llm.create_chat_completion(
    messages=[
        {
            "role": "user",
            "content": (
                "What is the sentiment conveyed in the following text: "
                f"{user_input}."
            ),
        },
    ],
1    tools=tools,
    tool_choice={"type": "function", "function": {"name": "Sentiment"}},
2    logits_processor=transformers.LogitsProcessorList(
        [outlines_logits_processor]
    ),
)
output["choices"][0]["message"]["tool_calls"][0]["function"]["arguments"]

1: Structured Outputs
2: Structured Generation

'{ "label": "Positive"}'

Knowledge Graph Generation

Kùzu logo

Graph database: https://kuzudb.com/

Consider a text

with open('./assets/curie.txt', "r") as f:
    curie_text = f.read()
print(curie_text)

When Marie Curie came to the United States for the first time, in May 1921, she had already discovered the elements radium and polonium, coined the term “radio-active” and won the Nobel Prize—twice. But the Polish-born scientist, almost pathologically shy and accustomed to spending most of her time in her Paris laboratory, was stunned by the fanfare that greeted her. In 1898 she indeed identified one of the substances and named it polonium, after her homeland. Five months later, she identified a second element, which the world came to know as radium. Curie described the elements she studied as “radio-active.”

In 1894, she met Pierre Curie, a 35-year-old physicist at a French technical college who had been studying crystals and magnetism. More than a decade before, he and his brother Jacques had discovered piezoelectricity, the electric charge produced in solid materials under pressure. Pierre was taken by Marie’s uncommon intellect and drive, and he proposed to her. They were married in 1895 in a civil service attended by family and a few friends.

Both Curies shared the Nobel Prize in physics with Becquerel in 1903. It was the first Nobel to be awarded to a woman. In 1911, rumors spread that Curie was having an affair with the prominent physicist Paul Langevin, a man five years her junior who had been Pierre’s student and had worked closely with Albert Einstein. The front-page coverage of the scandal threatened to overshadow another news story later that year: her second Nobel Prize.

This one, in chemistry, was for the discovery of polonium and radium. In her acceptance speech in Stockholm, she paid tribute to her husband but also made clear that her work was independent from his, spelling out their separate contributions and describing the discoveries she had made after his death.

Chunk the text

texts = curie_text.split("\n\n")
texts

['When Marie Curie came to the United States for the first time, in May 1921, she had already discovered the elements radium and polonium, coined the term “radio-active” and won the Nobel Prize—twice. But the Polish-born scientist, almost pathologically shy and accustomed to spending most of her time in her Paris laboratory, was stunned by the fanfare that greeted her. In 1898 she indeed identified one of the substances and named it polonium, after her homeland. Five months later, she identified a second element, which the world came to know as radium. Curie described the elements she studied as “radio-active.”',
 'In 1894, she met Pierre Curie, a 35-year-old physicist at a French technical college who had been studying crystals and magnetism. More than a decade before, he and his brother Jacques had discovered piezoelectricity, the electric charge produced in solid materials under pressure. Pierre was taken by Marie’s uncommon intellect and drive, and he proposed to her. They were married in 1895 in a civil service attended by family and a few friends.',
 'Both Curies shared the Nobel Prize in physics with Becquerel in 1903. It was the first Nobel to be awarded to a woman. In 1911, rumors spread that Curie was having an affair with the prominent physicist Paul Langevin, a man five years her junior who had been Pierre’s student and had worked closely with Albert Einstein. The front-page coverage of the scandal threatened to overshadow another news story later that year: her second Nobel Prize.',
 'This one, in chemistry, was for the discovery of polonium and radium. In her acceptance speech in Stockholm, she paid tribute to her husband but also made clear that her work was independent from his, spelling out their separate contributions and describing the discoveries she had made after his death.\n']

from pydantic import BaseModel, Field
from typing import Optional

class Node(BaseModel):
    """Node of the Knowledge Graph"""
    id: int = Field(
        ..., description="Unique identifier of the node starting at zero"
    )
    type: str = Field(..., description="Type of the node")
    label: str = Field(..., description="Label of the node")

class Edge(BaseModel):
    """Edge of the Knowledge Graph"""
    source: int = Field(..., description="Unique source of the edge")
    target: int = Field(..., description="Unique target of the edge")
    type: str = Field(..., description="Type of the edge")
    label: str = Field(..., description="Label of the edge")

from typing import List
from langchain_core.utils.function_calling import convert_to_openai_tool

class KnowledgeGraph(BaseModel):
    """Generated Knowledge Graph"""
    nodes: List[Node] = Field(
        ..., description="List of nodes of the knowledge graph")
    edges: List[Edge] = Field(
        ..., description="List of edges of the knowledge graph")

tools = [convert_to_openai_tool(KnowledgeGraph)]

def build_messages(text: str):
    messages = [
        {
            "role": "system",
            "content": (
                "You are a world class AI model who answers questions "
                "in JSON with correct Pydantic schema. "
                "Here's the json schema you must adhere to:\n<schema>\n"
                f"{KnowledgeGraph.schema_json()}\n</schema>"
            )
        },{
            "role": "user",
            "content": (
                "Describe the following text as a detailed "
                f"knowledge graph:\n{text}"
            )
        }]
    return messages

def generate_assistant_message(messages):
    outlines_logits_processor = outlines.processors.JSONLogitsProcessor(
        KnowledgeGraph,
        outlines_tokenizer,
        whitespace_pattern=r"[\n\t ]*"
    )
    output = llm.create_chat_completion(
        messages=messages,
1        tools=tools,
        tool_choice={"type": "function",
                     "function": {"name": "KnowledgeGraph"}},
2        logits_processor=transformers.LogitsProcessorList(
            [outlines_logits_processor]),
        temperature=0,
        seed=42,
        max_tokens=5000,
    )
    return output["choices"][0]["message"]

1: Structured Outputs
2: Structured Generation

def generate_kg(text):
    messages = build_messages(text)
    assistant_message = generate_assistant_message(messages)
    return assistant_message["tool_calls"][0]["function"]["arguments"]

generate_kg("Alice loves Bob")

'{"nodes": [{"id": 0, "type": "Person", "label": "Alice"}, {"id": 1, "type": "Person", "label": "Bob"}], "edges": [{"source": 0, "target": 1, "type": "LOVES", "label": "loves"}]}'

import json

nodes, edges = [], []
for text in texts:
    kg = generate_kg(text)
    nodes.append(json.loads(kg)["nodes"])
    edges.append(json.loads(kg)["edges"])

Node and Edge Type Candidates

from collections import Counter

print(
    Counter([node["type"].upper() for i in range(len(texts))
             for node in nodes[i]])
)
print(
    Counter([edge["type"].upper() for i in range(len(texts))
             for edge in edges[i]])
)

Counter({'PERSON': 11, 'CONCEPT': 4, 'COUNTRY': 2, 'ELEMENT': 2, 'EVENT': 2, 'CHEMICALELEMENT': 2, 'AWARD': 1})
Counter({'DISCOVERED': 5, 'STUDIED': 4, 'AWARD': 3, 'MARRIED': 2, 'RELATED_TO': 2, 'RECEIVED': 2, 'DECEASED': 2, 'BORN_IN': 1, 'VISITED': 1, 'COINED': 1, 'NAMED_AFTER': 1, 'IS': 1, 'MET': 1, 'BROTHER': 1, 'PROPOSED': 1, 'MARRIAGE': 1, 'AFFAIR': 1, 'COLLABORATION': 1})

from typing import Literal, Optional
from pydantic import BaseModel, Field

class Node(BaseModel):
    """Node of the Knowledge Graph"""
    id: int = Field(
        ..., description="Unique identifier of the node starting at zero")
    type: str = Field(..., description="Type of the node")
    label: str = Field(..., description="Label of the node")

class Edge(BaseModel):
    """Edge of the Knowledge Graph"""
    source: int = Field(..., description="Unique source of the edge")
    target: int = Field(..., description="Unique target of the edge")
    type: str = Field(..., description="Type of the edge")
    label: str = Field(..., description="Label of the edge")

from typing import Literal, Optional
from pydantic import BaseModel, Field
class Node(BaseModel):
    """Node of the Knowledge Graph"""
    id: int = Field(
        ..., description="Unique identifier of the node starting at zero")
    type: Literal[
    "PERSON", "AWARD", "DISCOVERY", "LOCATION", "OTHER"
    ] = Field(..., description="Type of the node")
    label: str = Field(..., description="Label of the node")
class Edge(BaseModel):
    """Edge of the Knowledge Graph"""
    source: int = Field(..., description="Unique source of the edge")
    target: int = Field(..., description="Unique target of the edge")
    type: Literal[
    "DISCOVERED", "AWARDED", "INTERPERSONALRELATIONSHIP", "VISITED", "OTHER"
    ] = Field(..., description="Type of the edge")
    label: str = Field(..., description="Label of the edge")

Chunk 1
Chunk 2
Chunk 3
Chunk 4

Code

from graphviz import Digraph

dot = Digraph()
i = 0
for node in nodes[i]:
    if node['type'] != "OTHER":
        dot.node(str(node['id']), node['type']+"\n"+node['label'], shape='circle', width='1', height='1')
for edge in edges[i]:
    if edge["type"] != "OTHER": #and nodes[i][edge["source"]]["type"]!= "OTHER" and nodes[i][edge["target"]]["type"]!= "OTHER":
        dot.edge(str(edge['source']), str(edge['target']), label=edge['type']+"\n"+ edge['label'])
print(texts[i])
dot

When Marie Curie came to the United States for the first time, in May 1921, she had already discovered the elements radium and polonium, coined the term “radio-active” and won the Nobel Prize—twice. But the Polish-born scientist, almost pathologically shy and accustomed to spending most of her time in her Paris laboratory, was stunned by the fanfare that greeted her. In 1898 she indeed identified one of the substances and named it polonium, after her homeland. Five months later, she identified a second element, which the world came to know as radium. Curie described the elements she studied as “radio-active.”

Code

from graphviz import Digraph

dot = Digraph()
i = 1
for node in nodes[i]:
    if node['type'] != "OTHER":
        dot.node(str(node['id']), node['type']+"\n"+node['label'], shape='circle', width='1', height='1')
for edge in edges[i]:
    if edge["type"] != "OTHER": #and nodes[i][edge["source"]]["type"]!= "OTHER" and nodes[i][edge["target"]]["type"]!= "OTHER":
        dot.edge(str(edge['source']), str(edge['target']), label=edge['type']+"\n"+ edge['label'])
print(texts[i])
dot

In 1894, she met Pierre Curie, a 35-year-old physicist at a French technical college who had been studying crystals and magnetism. More than a decade before, he and his brother Jacques had discovered piezoelectricity, the electric charge produced in solid materials under pressure. Pierre was taken by Marie’s uncommon intellect and drive, and he proposed to her. They were married in 1895 in a civil service attended by family and a few friends.

Code

from graphviz import Digraph

dot = Digraph()
i = 2
for node in nodes[i]:
    if node['type'] != "OTHER":
        dot.node(str(node['id']), node['type']+"\n"+node['label'], shape='circle', width='1', height='1')
for edge in edges[i]:
    if edge["type"] != "OTHER": #and nodes[i][edge["source"]]["type"]!= "OTHER" and nodes[i][edge["target"]]["type"]!= "OTHER":
        dot.edge(str(edge['source']), str(edge['target']), label=edge['type']+"\n"+ edge['label'])
print(texts[i])
dot

Both Curies shared the Nobel Prize in physics with Becquerel in 1903. It was the first Nobel to be awarded to a woman. In 1911, rumors spread that Curie was having an affair with the prominent physicist Paul Langevin, a man five years her junior who had been Pierre’s student and had worked closely with Albert Einstein. The front-page coverage of the scandal threatened to overshadow another news story later that year: her second Nobel Prize.

Code

from graphviz import Digraph

dot = Digraph()
i = 3
for node in nodes[i]:
    if node['type'] != "OTHER":
        dot.node(str(node['id']), node['type']+"\n"+node['label'], shape='circle', width='1', height='1')
for edge in edges[i]:
    if edge["type"] != "OTHER":
        dot.edge(str(edge['source']), str(edge['target']), label=edge['type']+"\n"+ edge['label'])
print(texts[i])
dot

This one, in chemistry, was for the discovery of polonium and radium. In her acceptance speech in Stockholm, she paid tribute to her husband but also made clear that her work was independent from his, spelling out their separate contributions and describing the discoveries she had made after his death.

import pandas as pd

df_nodes = pd.DataFrame(nodes[0])
df_edges = pd.DataFrame({
    'source': [nodes[0][edge['source']]['label'] for edge in edges[0]],
    'target': [nodes[0][edge['target']]['label'] for edge in edges[0]],
    'type': [edge['type'] for edge in edges[0]],
    'label': [edge['label'] for edge in edges[0]]
})
for i in range(1,len(texts)):
    df_nodes_aux = pd.DataFrame({
        'id': [node['id']+len(df_nodes) for node in nodes[i]],
        'label': [node['label'] for node in nodes[i]],
        'type': [node['type'] for node in nodes[i]]
    })
    df_edges_aux = pd.DataFrame({
        'source': [nodes[i][edge['source']]['label'] for edge in edges[i]],
        'target': [nodes[i][edge['target']]['label'] for edge in edges[i]],
        'type': [edge['type'] for edge in edges[i]],
        'label': [edge['label'] for edge in edges[i]]
    })
    df_nodes = pd.concat([df_nodes, df_nodes_aux])
    df_edges = pd.concat([df_edges, df_edges_aux])

df_nodes=df_nodes[df_nodes["type"]!="OTHER"].drop_duplicates(subset="label")
df_edges=df_edges[df_edges["type"]!="OTHER"]

Insert nodes to the graph db

import kuzu

db = kuzu.Database()
conn = kuzu.Connection(db)
# create schema
conn.execute("CREATE NODE TABLE Person(name STRING, PRIMARY KEY (name))");
conn.execute("CREATE NODE TABLE Award(name STRING, PRIMARY KEY (name))");
conn.execute("CREATE NODE TABLE Discovery(name STRING, PRIMARY KEY (name))");
conn.execute("CREATE NODE TABLE Location(name STRING, PRIMARY KEY (name))");
# copy from dataframes
df_nodes_person = df_nodes[df_nodes["type"] == "PERSON"][["label"]]
df_nodes_award = df_nodes[df_nodes["type"] == "AWARD"][["label"]]
df_nodes_discovery = df_nodes[df_nodes["type"] == "DISCOVERY"][["label"]]
df_nodes_location = df_nodes[df_nodes["type"] == "LOCATION"][["label"]]
conn.execute("COPY Person FROM df_nodes_person");
conn.execute("COPY Award FROM df_nodes_award");
conn.execute("COPY Discovery FROM df_nodes_discovery");
conn.execute("COPY Location FROM df_nodes_location");

Check for nodes

result = conn.execute("MATCH (person:Person) RETURN person.name;")
while result.has_next():
    print(result.get_next())

['Marie Curie']
['Pierre Curie']
['Henri Becquerel']
['Paul Langevin']

Insert edges to the graph db

conn.execute("CREATE REL TABLE Awarded(FROM Person TO Award)"); # create schema
conn.execute("CREATE REL TABLE Discovered(FROM Person TO Discovery)");
conn.execute("CREATE REL TABLE Interpersonal_Relationship(FROM Person TO Person)");
conn.execute("CREATE REL TABLE Visited(FROM Person TO Location)");
def my_func(edge_type: str, source: str, target: str):
    mask1 = [a in list(df_nodes[df_nodes["type"] == source]['label']) for a in df_edges[df_edges["type"] == edge_type]["source"]]
    mask2 = [a in list(df_nodes[df_nodes["type"] == target]['label']) for a in df_edges[df_edges["type"] == edge_type]["target"]]
    mask = [a & b for a,b in zip(mask1,mask2)]
    return df_edges[df_edges["type"] == edge_type][mask]
df_edges_awarded = my_func("AWARDED", "PERSON", "AWARD")[["source", "target"]]
df_edges_discovered = my_func("DISCOVERED", "PERSON", "DISCOVERY")[["source", "target"]]
df_edges_visited = my_func("VISITED", "PERSON", "LOCATION")[["source", "target"]]
df_edges_interpersonal_relationship = my_func("INTERPERSONALRELATIONSHIP", "PERSON", "PERSON")[["source", "target"]]
conn.execute("COPY Discovered FROM df_edges_discovered"); # copy from dataframes
conn.execute("COPY Awarded FROM df_edges_awarded");
conn.execute("COPY Visited FROM df_edges_visited");
conn.execute("COPY Interpersonal_Relationship FROM df_edges_interpersonal_relationship");

Check for edges

result = conn.execute("MATCH (a)-[:DISCOVERED]->(c) RETURN a.name, c.name;")
while result.has_next():
    print(result.get_next())

['Marie Curie', 'Polonium']
['Marie Curie', 'Radium']
['Pierre Curie', 'Piezoelectricity']

KG-based Agents

Tools

Tool: Query Checker

def build_kuzu_query_checker_prompt(cypher_query):
    return (
    f"\n{cypher_query}\n"
    "Double check the Kùzu dialect of Cypher for the query above "
    "for common mistakes, including:\n"
    "- Using the correct number of arguments for functions\n"
    "- Casting to the correct data type\n"
    "- Do not omit the relationship pattern.\n"
    "- Always use `()-[]->()` instead of `()->()`.\n\n"
    "If there are any of the above mistakes, rewrite the query. "
    "If there are no mistakes, just reproduce the original query.\n\n"
    "Output the final Kùzu Cypher query only.\n\n"
    "Kùzu Cypher Query: "
    )

Tool: Query Checker

def query_checker_tool(cypher_query):
    user_prompt = build_kuzu_query_checker_prompt(cypher_query)
    response = llm.create_chat_completion(
        messages=[{"role": "user", "content": user_prompt}]
    )
    return response["choices"][0]["message"]["content"]


query_checker_tool(
"MATCH (p:Person)-[:Discovered]-<(:Discovery {name: 'Polonium'})\nRETURN *"
)

"MATCH (p:Person)-[:Discovered]->(d:Discovery {name: 'Polonium'})\nRETURN *"

Tool: Query Generator + Executor

from langchain_community.graphs import KuzuGraph

graph_db_schema = KuzuGraph(db).get_schema
print(graph_db_schema)

Node properties: [{'properties': [('name', 'STRING')], 'label': 'Person'}, {'properties': [('name', 'STRING')], 'label': 'Discovery'}, {'properties': [('name', 'STRING')], 'label': 'Award'}, {'properties': [('name', 'STRING')], 'label': 'Location'}]
Relationships properties: [{'properties': [], 'label': 'Awarded'}, {'properties': [], 'label': 'Discovered'}, {'properties': [], 'label': 'Interpersonal_Relationship'}, {'properties': [], 'label': 'Visited'}]
Relationships: ['(:Person)-[:Awarded]->(:Award)', '(:Person)-[:Discovered]->(:Discovery)', '(:Person)-[:Interpersonal_Relationship]->(:Person)', '(:Person)-[:Visited]->(:Location)']

Tool: Query Generator + Executor

def build_kuzu_prompt(query, graph_db_schema=graph_db_schema):
    return """Task: Generate Kùzu Cypher statement to query a graph database.

Instructions:
Generate the Kùzu dialect of Cypher with the following rules in mind:
1. Do not omit the relationship pattern. Always use `()-[]->()` instead of `()->()`.
2. Do not include triple backticks ``` in your response. Return only Cypher.
3. Do not return any notes or comments in your response.

Use only the provided relationship types and properties in the schema.
Do not use any other relationship types or properties that are not provided.
Schema:\n""" + graph_db_schema + """
\nExample:
The question is:\n"Which songs does the load album have?"
MATCH (a:ALBUM {name: 'Load'})<-[:IN_ALBUM]-(s:SONG) RETURN s.name
Note: Do not include any explanations or apologies in your responses.
Do not respond to any questions that might ask anything else than for you to construct a Cypher statement.
Do not include any text except the generated Cypher statement.

The question is:\n""" + query

Tool: Query Generator + Executor

def query_generator_tool(query):
    user_prompt = build_kuzu_prompt(query)
    output = llm.create_chat_completion(
        messages = [{"role": "user", "content": user_prompt}]
    )
    cypher_query = output['choices'][0]['message']['content']
    cypher_query = query_checker_tool(cypher_query)
    print(f"\x1b[33m Cypher query: {cypher_query} \x1b[0m")
    response = conn.execute(f"{cypher_query}");
    df = response.get_as_pl()
    col_name = df.columns[0]
    _values = df[col_name].to_list()
    return f"[{col_name}: {_values}]"
query_generator_tool("What discovery is Marie Curie famous for?")

 Cypher query: MATCH (p:Person {name: 'Marie Curie'})-[:Discovered]->(d:Discovery) RETURN d.name

"[d.name: ['Radium', 'Polonium']]"

Tool: Conversational Response

def conversational_response(text):
    return text

ReAct agent

from pydantic import BaseModel, Field


class Reason_and_Act(BaseModel):
    Scratchpad: str = Field(
        ...,
        description="Information from the Observation useful to answer the question",
    )
    Thought: str = Field(
        ...,
        description="It describes your thoughts about the question you have been asked",
    )
    Action: Literal["conversational_response", "query_generator", "query_checker"] = (
        Field(..., description="The action to take")
    )
    Action_Input: str = Field(..., description="The arguments of the Action.")

ReAct Agent

class Final_Answer(BaseModel):
    Scratchpad: str = Field(
        ...,
        description="Information from the Observation useful to answer the question",
    )
    Final_Answer: str = Field(
        ..., description="Answer to the question grounded on the Observation"
    )

ReAct Agent

class Decision(BaseModel):
    Decision: Reason_and_Act | Final_Answer

ReAct Agent

from outlines import generate, models
from outlines.fsm.json_schema import build_regex_from_schema, convert_json_schema_to_str

model = models.LlamaCpp(llm)
schema_str = convert_json_schema_to_str(json_schema=Decision.schema_json())
regex_str = build_regex_from_schema(schema_str)

ReAct Agent

def generate_hermes_prompt(question, schema=""):
    return (
        "<|im_start|>system\n"
        "You are a world class AI model who answers questions in JSON with correct Pydantic schema."
        f"\nHere's the JSON schema you must adhere to:\n<schema>\n{schema}\n</schema>\n"
        "You run in a loop of Scratchpad, Thought, Action, Action Input, PAUSE, Observation."
        "\nAt the end of the loop you output a Final Answer. "
        "\n- Use Scratchpad to store the information from the observation useful to answer the question"
        "\n- Use Thought to describe your thoughts about the question you have been asked "
        "and reflect carefully about the Observation if it exists. "
        "\n- Use Action to run one of the actions available to you. "
        "\n- Use Action Input to input the arguments of the selected action - then return PAUSE. "
        "\n- Observation will be the result of running those actions. "
        "\nYour available actions are:\n"
        "query_generator:\n"
        "e.g. query_generator: Who is Marie Curie related to?\n"
        "Returns a detailed and correct Kùzu Cypher query\n"
        "query_checker:\n"
        "e.g. query_checker: MATCH (a:ALBUM {name: 'The Black Album'})<-[:IN_ALBUM]-(s:SONG) RETURN COUNT(s)\n"
        "Returns a detailed and correct Kùzu Cypher query after double checking the query for common mistakes\n"
        "conversational_reponse:"
        "e.g. conversational_response: Hi!\n"
        "Returns a conversational response to the user\n"
        "DO NOT TRY TO GUESS THE ANSWER. Begin! <|im_end|>"
        "\n<|im_start|>user\n" + question + "<|im_end|>"
        "\n<|im_start|>assistant\n"
    )

ReAct Agent

class ChatBot:
    def __init__(self, prompt=""):
        self.prompt = prompt

    def __call__(self, user_prompt):
        self.prompt += user_prompt
        result = self.execute()
        return result

    def execute(self):
        generator = generate.regex(model, regex_str)
        result = generator(self.prompt, max_tokens=1024, temperature=0, seed=42)
        return result

ReAct Agent

import json

def query(question, max_turns=5):
    i = 0
    next_prompt = (
        "\n<|im_start|>user\n" + question + "<|im_end|>"
        "\n<|im_start|>assistant\n"
    )
    previous_actions = []
    while i < max_turns:
        i += 1
        prompt = generate_hermes_prompt(question=question, schema=Decision.schema_json())
        bot = ChatBot(prompt=prompt)
        result = bot(next_prompt)
        json_result = json.loads(result)['Decision']
        if "Final_Answer" not in list(json_result.keys()):
            scratchpad = json_result['Scratchpad'] if i == 0 else ""
            thought = json_result['Thought']
            action = json_result['Action']
            action_input = json_result['Action_Input']
            print(f"\x1b[34m Scratchpad: {scratchpad} \x1b[0m")
            print(f"\x1b[34m Thought: {thought} \x1b[0m")
            print(f"\x1b[36m  -- running {action}: {str(action_input)}\x1b[0m")
            if action + ": " + str(action_input) in previous_actions:
                observation = "You already run that action. **TRY A DIFFERENT ACTION INPUT.**"
            else:
                if action=="query_checker":
                    try:
                        observation = query_checker_tool(str(action_input))
                    except Exception as e:
                        observation = f"{e}"
                elif action=="query_generator":
                    try:
                        observation = query_generator_tool(str(action_input))
                    except Exception as e:
                        observation = f"{e}"
                elif action=="conversational_response":
                    try:
                        observation = conversational_response(str(action_input))
                        observation += "\nAnswer to the user."
                    except Exception as e:
                        observation = f"{e}"
            print()
            print(f"\x1b[33m Observation: {observation} \x1b[0m")
            print()
            previous_actions.append(action + ": " + str(action_input))
            next_prompt += (
                "\nScratchpad: " + scratchpad +
                "\nThought: " + thought +
                "\nAction: " + action  +
                "\nAction Input: " + action_input +
                "\nObservation: " + str(observation)
            )
        else:
            scratchpad = json_result["Scratchpad"]
            final_answer = json_result["Final_Answer"]
            print(f"\x1b[34m Scratchpad: {scratchpad} \x1b[0m")
            print(f"\x1b[34m Final Answer: {final_answer} \x1b[0m")
            return final_answer
    print(f"\nFinal Answer: I am sorry, but I am unable to answer your question. Please provide more information or a different question.")
    return "No answer found"

ReAct Agent

query("Query the database to see which discovery did Pierre Curie do?")

 Scratchpad:
 Thought: To find out what specific discovery Pierre Curie made, I should query the database for information related to his work.
  -- running query_generator: MATCH (p:PERSON {name: 'Pierre Curie'})-[:DISCOVERED]->(d:DISCOVERY) RETURN d.name
 Cypher query: MATCH (p:PERSON {name: 'Pierre Curie'})-[:DISCOVERED]->(d:DISCOVERY) RETURN d.name

 Observation: [d.name: ['Piezoelectricity']]

 Scratchpad: Pierre Curie discovered piezoelectricity.
 Final Answer: Pierre Curie discovered piezoelectricity.

'Pierre Curie discovered piezoelectricity.'

ReAct Agent

query("Query the database to see which discovery did Marie Curie do?")

 Scratchpad:
 Thought: To find out which discovery Marie Curie is known for, I will query the database to search for her discoveries.
  -- running query_generator: MATCH (p:PERSON {name: 'Marie Curie'})-[:DISCOVERED]->(d:DISCOVERY) RETURN d.name
 Cypher query: MATCH (p:PERSON {name: 'Marie Curie'})-[:DISCOVERED]->(d:DISCOVERY) RETURN d.name

 Observation: [d.name: ['Radium', 'Polonium']]

 Scratchpad: Marie Curie is known for discovering Radium and Polonium.
 Final Answer: Marie Curie discovered Radium and Polonium.

'Marie Curie discovered Radium and Polonium.'

ReAct Agent

query("Tell me a joke")

 Scratchpad:
 Thought: To provide a joke, I will use my knowledge base to find a suitable joke that is appropriate for all ages.
  -- running conversational_response: Tell a family-friendly joke.

 Observation: Tell a family-friendly joke.
Answer to the user.

 Scratchpad: To provide a joke, I will use my knowledge base to find a suitable joke that is appropriate for all ages.
 Final Answer: Why don't scientists trust atoms? Because they make up everything!

"Why don't scientists trust atoms? Because they make up everything!"

Conclusions

Structured Outputs + Structured Generation help us to generate Knowledge Graphs from unstructured data
Structured Outputs + Structured Generation help us create KG-based Agents that can query graph databases as well as calling other tools

References

Coalescence by Will Kurt
Fast, High-Fidelity LLM Decoding with Regex Constraints by Vivien Tran-Thien
A simple Python implementation of the ReAct pattern for LLMs by Simon Willison
Kùzu (graph DB) + Llama.cpp (inference) + Outlines (structured generation) + LangChain (framework) + Solara (visualization)

How was my presentation?

Please, leave me your anonymous feedback at https://www.admonymous.co/alonsosilva

Building Knowledge Graph-Based Agents with Structured Text Generation and Open-Weights Models

hi 👋, I’m Alonso

Introduction

Show me the prompt!

Structured Outputs (in the style of Instructor/Marvin libraries)

Structured Outputs in Code

Structured Outputs in Code

Structured Outputs in Code

Structured Outputs in Code

What is Structured Generation?

Observation: LLMs are samplers

We need to talk about Regular Expressions (regex)

Regular Expression (regex)

Deterministic Finite Automata (DFA)

Deterministic Finite Automata (DFA)

Deterministic Finite Automata (DFA)

Back to the problem

From regular expression (regex) to deterministic finite automata (DFA)

Life is hard

What’s in a “label”?

Structured Generation in Code

Structured Generation in Code

Structured Outputs + Structured Generation

Knowledge Graph Generation

Consider a text

Chunk the text

Node and Edge Type Candidates

Insert nodes to the graph db

Check for nodes

Insert edges to the graph db

Check for edges

KG-based Agents

Tools

Tool: Query Checker

Tool: Query Checker

Tool: Query Generator + Executor

Tool: Query Generator + Executor

Tool: Query Generator + Executor

Tool: Conversational Response

ReAct agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

ReAct Agent

Conclusions

Conclusions

References

How was my presentation?
